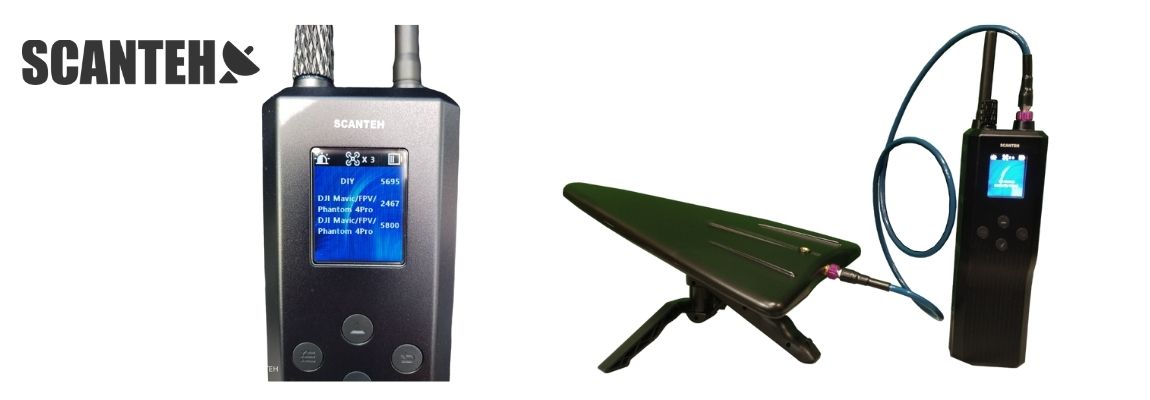

Scanteh DW-DT-01 Drone Tracker - a portable device that detects unwanted UAVs
Our Unmanned Aerial Vehicle (UAV) detector (drone direction finder) uses advanced spectrum sensing technology and artificial intelligence to accurately and reliably identify and classify UAV signal transmission channels. Features of this equipment include:
- Detection of the full range of UAV frequencies: the device is able to monitor a wide range of frequencies used by UAVs, which allows you to reliably detect their presence.
- A wide range of drone types: the device can recognize different types of unmanned aerial vehicles, which ensures its versatility and ability to work with different models.
- Updated drone type library: We constantly update the library so you can be sure that the device always has the latest information about the latest drone models.
- Compact size and low weight: The device is lightweight and easy to use, and can be easily carried and moved around, making it ideal for mobile UAV detection.
- Alarm function: The device has an audible and visual alarm that immediately notifies you when a suspicious UAV signal is detected, providing a quick response and safety measures.
- Additional customizable features: The device can be configured for specific usage conditions, allowing you to optimize its performance for maximum efficiency.
Equipment is always checked and tested before purchase! Testing and trials can be carried out at a time convenient for you, by agreement.
Characteristics of the DW-DT-01 drone detector:
- The drone detection radius is 800-1300 meters.
- Installation method - portable
- Built-in battery - yes
- Power supply characteristics - 8000 mAh 3.7V (built-in battery)
- Operating temperature range - -20...+50°C
- Weight - 800 g (with battery)
- UAV detection frequencies - 1.6 GHz, 2.4 GHz, 5.8 GHz
- Operating time - ≈180 minutes (continuously)
- Detectable drones - DJI Mavic, DJI FPV Drone Combo, Xiaomi, YUNEEC, PowerVision, Tello, etc.
- Drone detection distance - 800 m (standard antennas), 1100-1300 m (additional antenna)
- External interface - Type-C
- Material - metal body

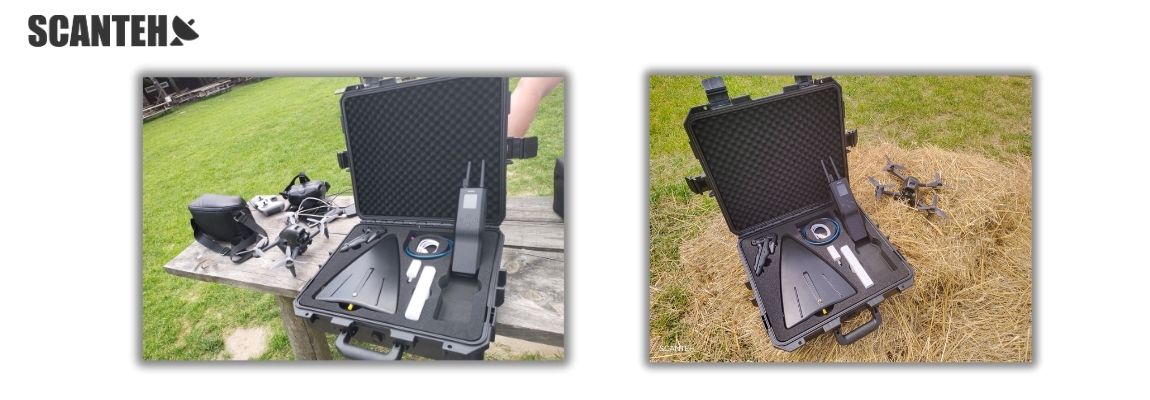

The device package:
- direction finder DW-DT-01
- PowerBank 20000 mAh
- charger
- antennas (2 pcs)
- tripod for easy installation of the antenna
- cables for connection
- lightweight and durable composite protective case
How it works:
The device operates using passive drone detection technology and is absolutely safe and reliable. This technology guarantees the absence of active external electromagnetic signals.Scanteh direction finder DW-DT-01 is capable of accurately tracking drone or quadcopter signals within range in real time. When a suspicious signal is detected, it will automatically highlight it and compare it with the model database to ensure maximum accuracy. After that, detailed information about the brand, model, and operating frequency of the unwanted unmanned aerial vehicles appears on the screen.
Examples of application:
